Saturday, February 27, 2010

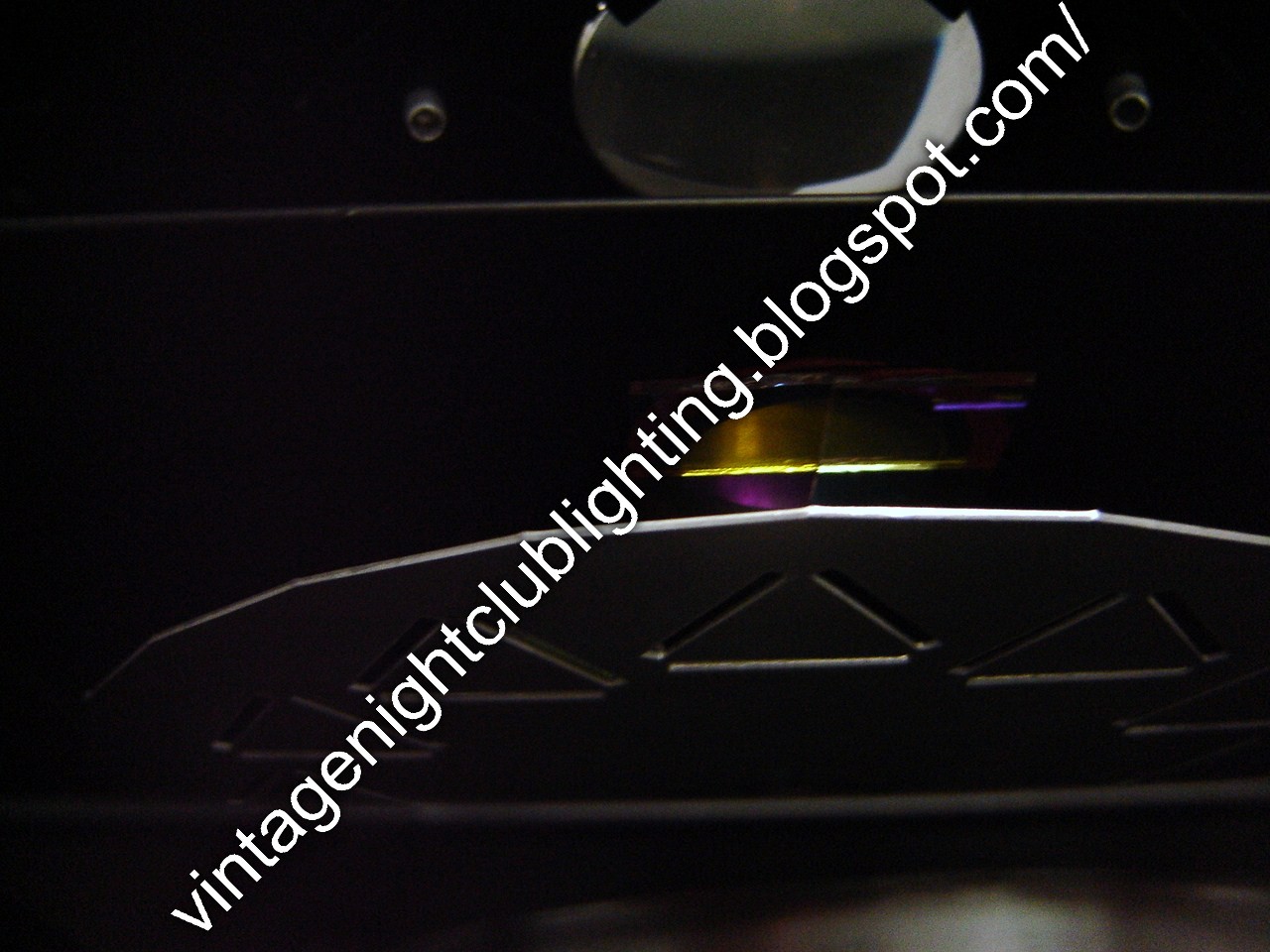

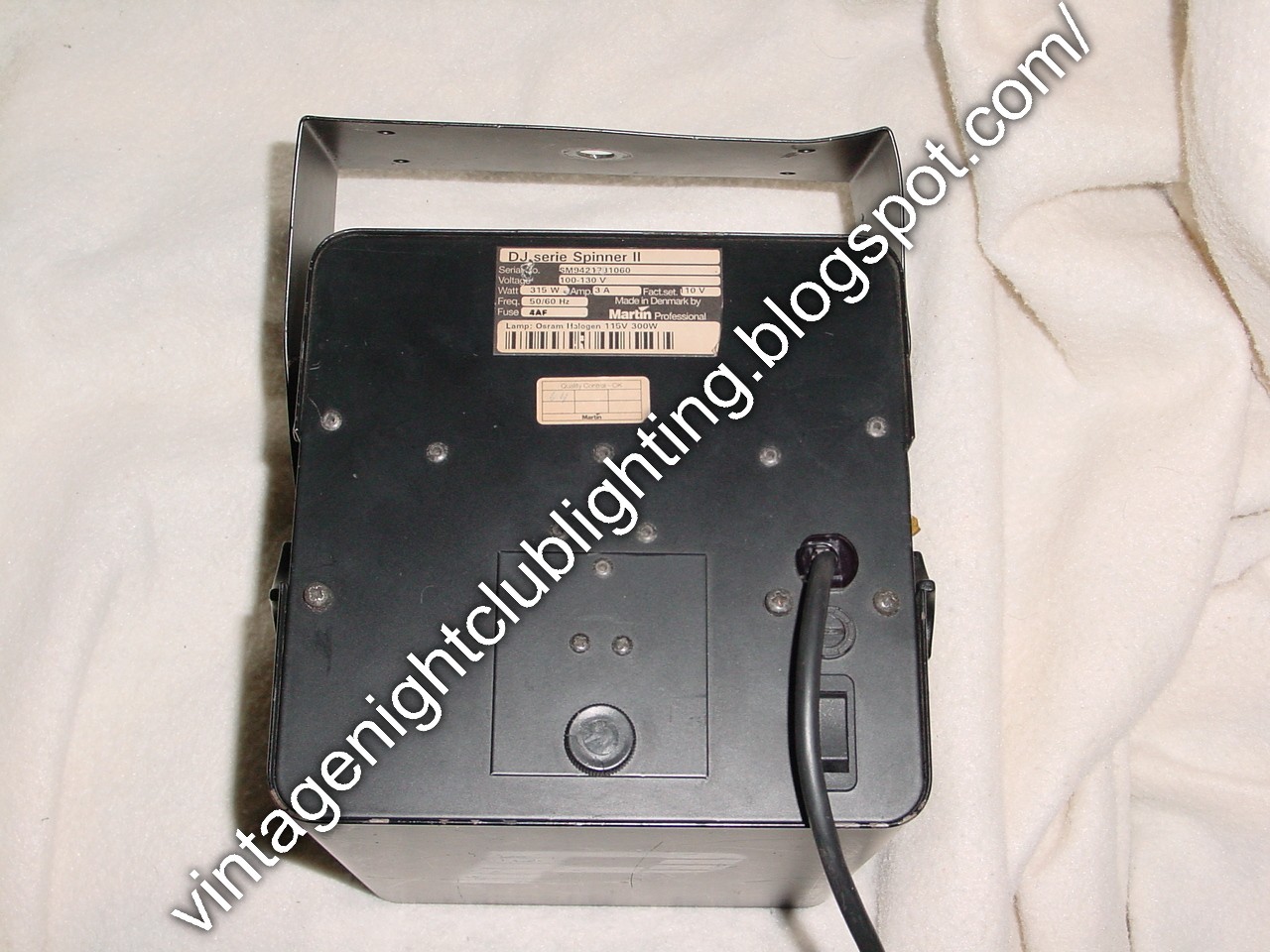

Martin DJ Series Spinner



Super unique light!! This Spinner light is produced from Martin and is part of the DJ Series. Unit has a large rotating gobo wheel that moves to the sound of the music. Light is produced from a 300 watt bulb that is behind the gobo wheel. Once the light goes through the wheel it goes through a 4-way dichoric lens then finally out of a front lens. Unit has 2 motors. 1 for the gobo wheel and 1 for the cooling fan. Unit made in Denmark.









Sunday, February 21, 2010

Lightcraft 430 Mini Relay



This is a Lightcraft 430 Mini Relay. Unit can be controlled by any of the Lightcraft controllers. It is triggered by the 6 pin DIN input. Each channel has a max of 300 watts and 1200 watts total for the unit. The pack also has an additional unswitched outlet on the end of the chassis for mirror ball units and such. Small compact unit that works great! Unit is made in the United States.


Lightcraft 432 Mini Dimmer



This is a Lightcraft 432 Mini Dimmer. Unit can be controlled by any of the Lightcraft controllers. It is triggered by the 6 pin DIN input. Each channel has a max of 300 watts and 1200 watts total for the unit. The pack also has an additional unswitched outlet on the end of the chassis for mirror ball units and such. Small compact unit that works great! Unit is made in the United States.



Clay Paky Gemini 2




Video of Clay Paky Gemini


Small and simple unit. This is a Gemini unit made by Clay Paky. This light uses a 75 watt, 12 volt EYC MR16 bulb that rotates to produce a cool looking rotating beam of light. Currently it has a 50 watt bulb in it. The unit has 2 parts. the top part is where the transformer is housed and the long tube is where the bulb, rotation motor and optical lense is housed. Unit has 2 circuits. 1 for the lamp and 1 for the rotation motor. This unit is great for long throw applications because of the concentrated beam. Unit made in Italy.











Unknown Multi-Lens Unit


You are looking at a unique special effect light. Similar to the METEOR Satyr.  Cool unit that has 2 - 300 watt 64514 120 volt lamps that rotate to the sound of the music. Unit originally had 2 - 24 volt 150 watt lamps but I changed them out to get rid of the heavy transformer and double the light output. In front of the lamps is a free-spinning wheel with dichoric lenses on it. This is how the unit changes colors. There are 7 colors plus white. The light beams are projected through 18 glass lenses on the front of the unit. Fixture made in China.

Video of the METEOR Satyr Lighting Effect






Lightcraft 460 Pro Relay



This is a Lightcraft 460 Relay. Unit can be controlled by any of the Lightcraft controllers. It is triggered by the 6 pin DIN input. Each channel has a max of 600 watts and 2400 watts total for the unit. Each output channel has 1 outlet and individual fuse protection. Unit also has a 1/4" input for an optional foot controller or on / off control from an outside unit. Unit is made in the United States.



Saturday, February 20, 2010

Lightcraft 460 Pro Dimmer



This is a Lightcraft 460 Dimmer. Unit can be controlled by any of the Lightcraft controllers. It is triggered by the 6 pin DIN input. Each channel has a max of 600 watts and 2400 watts total for the unit. Each output channel has 1 outlet and individual fuse protection. Unit also has a 1/4" input for an optional foot controller or on / off control from an outside unit. Unit is made in the United States.



Lightcraft DM 860 Dual Purpose Dimmer



This is a Lightcraft 860 DM Dual Purpose Dimmer. Unit can be controlled by any of the Lightcraft controllers as a dimmer pack or run independently. When it runs as a dimmer by an external controller it is triggered by the 6 pin DIN input. When it runs independently is works as a chase controller triggered via the internal microphone. Unit also features an adjustment knob for the microphone sensitivity. Each output channel has 2 outlets and individual fuse protection. Pack also has an 1/4" for optional foot pedal control. Each channel has a capacity of 600 watts ant the total capacity is 2400 watts for the unit. Unit is made in the United States.



Lightcraft 860 RM Dual Purpose Relay



This is a Lightcraft 860 RM Dual Purpose Relay. Unit can be controlled by any of the Lightcraft controllers as a relay pack or run independently. When it runs as a relay controlled by an external controller it is triggered by the 6 pin DIN input. When it runs independently is works as a chase controller triggered via the internal microphone. Unit also features an adjustment knob for the microphone sensitivity. Each output channel has 2 outlets and individual fuse protection. In addition channel 4 has a special switch for strobe lights. When the switch is activated it prevents surges on the channel which can sometimes be caused from the surge from the strobe discharging and charging. Pack also has an 1/4" input for a foot pedal switch. Each channel has a capacity of 600 watts ant the total capacity is 2400 watts for the unit. Unit is made in the United States.
